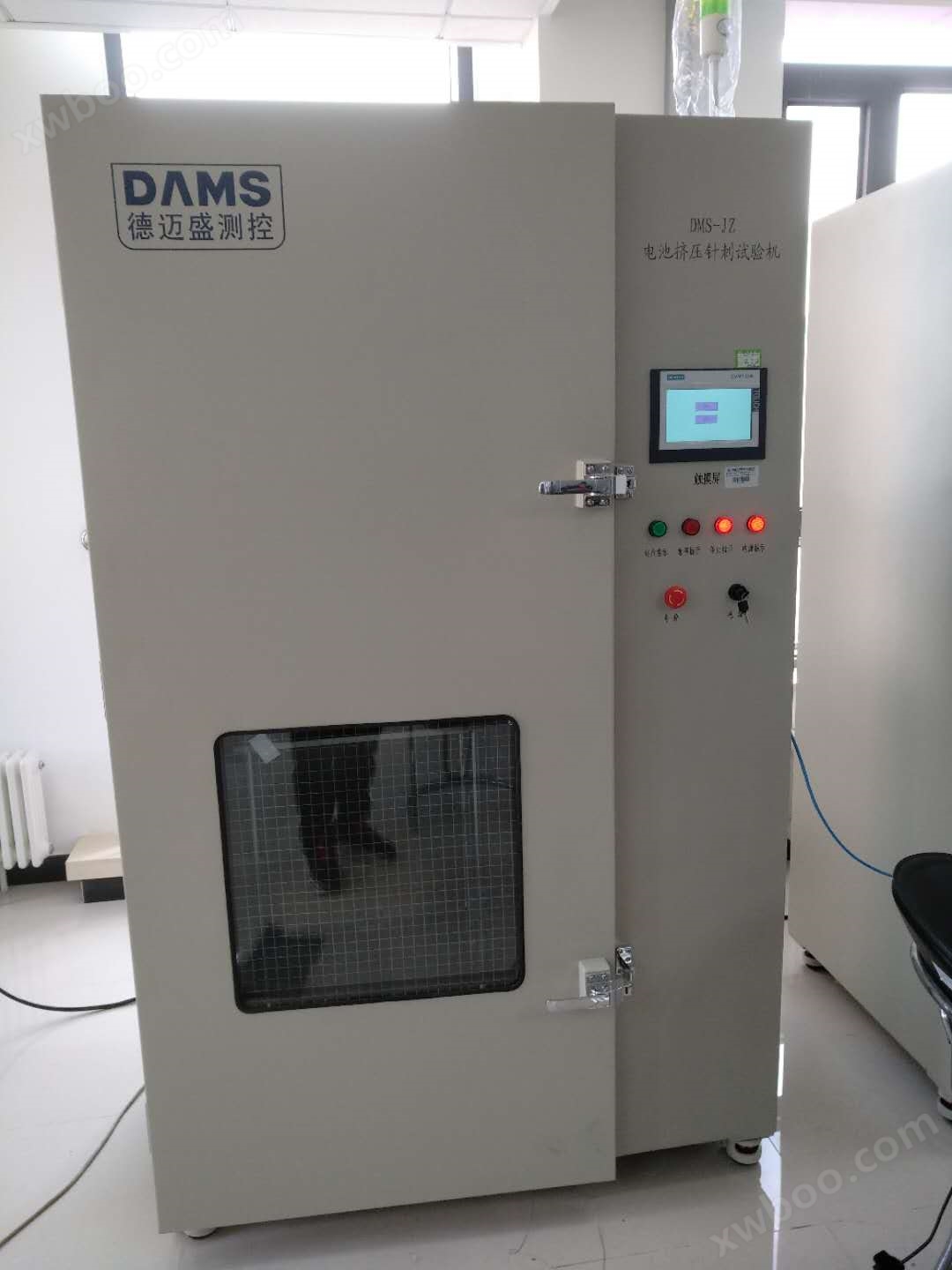

电池针刺挤压试验台
产品型号
更新时间
2024-10-17厂商性质
浏览次数
296详细介绍
二、技术参数 Technical Specification
型号 Model |
DMS-JY8 |
|
结构 Structure |
一体机结构，门上安装防爆锁+防爆链One machine structure, the door uses explosion-proof lock and explosion-proof chain |
|
最大压力 Max.pressure |
1KN-20KN（可调，可根据客户要求定制）Adjustable, customized according to requirements |
活塞直径Piston diameter |
32mm |
驱动方式Driving method |
液压Hydraulic pressure |
单位转换Unit conversion |
Kg/N/Lb |
挤压/针刺行程Crush/Nail Penetration range |
0~200MM |
挤压精度 Crush accuracy |
±1% |
针刺测试速度Nail Penetration test speed |
0-40mm/s（可调） |
|
挤压保持时间 Crush hold time |
0~99小时99分钟99秒 |
|
控制方式 Control method |
PLC触摸屏控制系统(7寸触摸屏)+远程遥控控制PLC touch screen control system (7-inch touch screen) + remote control |
测试空间 Testing space |
W500xD300xH300 mm |
外形尺寸 Dimension |
W940xD780xH1620 mm |
|
可视窗口 Viewing Window |
390 X 360mm(20mm厚钢化防爆玻璃+防爆不锈钢网) 390 X 360mm (20mm thick explosion-proof glass + explosion proof stainless steel mesh) |
电源 Power supply |
AC 380V 50HZ |
功率 Power |
3.0KW |
|
USB接口 USB interface |
带USB接口，可将测试数据导出 With USB interface, test data can be exported |
|
辅助功能 Accessibility |
防爆泄压装置、排烟装置、防爆链Explosion-proof pressure relief device, smoke exhaust device, explosion-proof chain |
|
选购件 Options |
视频监控系统，温度、电压采集系统Video monitoring system, temperature, voltage acquisition system |
